JLN-720 Satellite Log

Accurate ships speed and distance with your fingertip operation

Send a Request

Description

General

Comply with IEC 61023(Ed.3), SDME standards for the ships of 50,000GT and greater
Provide ship speed with high accuracy 0.02kn or 0.2%
Offers transverse speed at bow and stern along with longitudinal speed, ROT and total/trip distance with the satellite signals
Color LCD display with touch panel provides clear display and easy operation
JRC original Remote Maintenance System (RMS) applicable

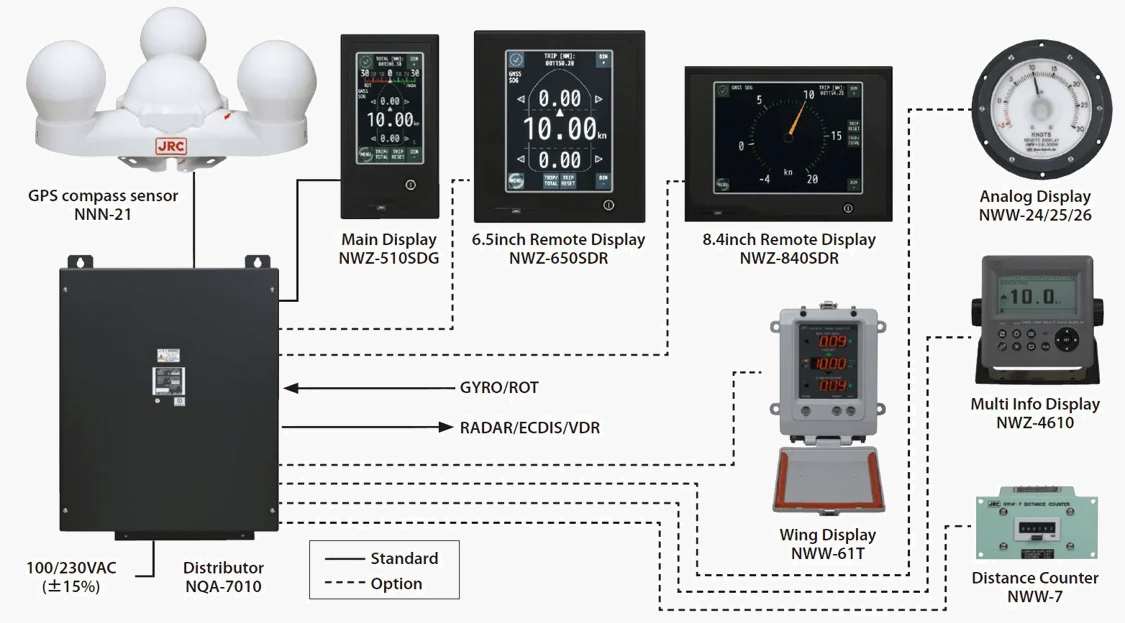

Standard components

Optional components

Remote Display : NWZ-650SDR/NWZ-840SDR
Multi-information Display (MID) : NWZ-4610
Wing Display : NWW-61T
Digital Display : NWW-62TA/TB
Distance Counter : NWW-7
Analog Display : NWW-24/NWW-25/NWW-26
Dimmer Unit : NCM-227/NCM-329
Remote Display Communication Cable : CFS-6880
GPS Compass Sensor Connection Cable : H-CFQ7248-30/CFQ-7249/H-CFQ-7249-10
Multi-information Display Communication/Power Supply Cable : CFQ-5766D/CFQ-5766F
Junction Box for GPS Compass Sensor : NQE-7720
Junction Box Mouting Bracket : MPBP31612
Mounting Rack : MPBX44117
Bird-hazard Preventive Kit : MPXP34012A

Name	Satellite log
System	GPS satellite
Receive Freq.	1575.42MHz ±1MHz(C/A code)
Speed range	(Bow P/S) -99.99~99.99kn (Fore/Aft.) -99.99~99.99kn (Stern P/S) -99.99~99.99kn
Distance run range	0~999999.99NM
Speed accuracy	1% or 0.1kn whichever value is greater 0.2% or 0.02kn whichever value is greater (5 satellites or more)
Distance accuracy	1% or 0.1NM in each hour whichever value is greater
Speed Indication	Integer 2-digit + decimal 2-digit
Display unit	Vertical 5" WVGA with touch panel
Interface port	Input IEC 61162-1 ×3 Output IEC 61162-1 ×8
Power supply	100V or 230V AC ±15%,50/60Hz,1Φ
Power consumption	110VA max
Operating temp	GPS compass sensor -25~55℃ Distributor -15~55℃ Main display -15~55℃
